Wallclock WiFi — hang it, power it, it's already on time
Red 6-digit LED matrix display panel, synchronizable via WiFi or LAN network, with PoE power over a single cable.
- 6-digit red LED
- NTP over WiFi or LAN
- PoE IEEE802.3af
- Up to 30 metres
Wallclock WiFi
Features
Wallclock Wifi Time Display

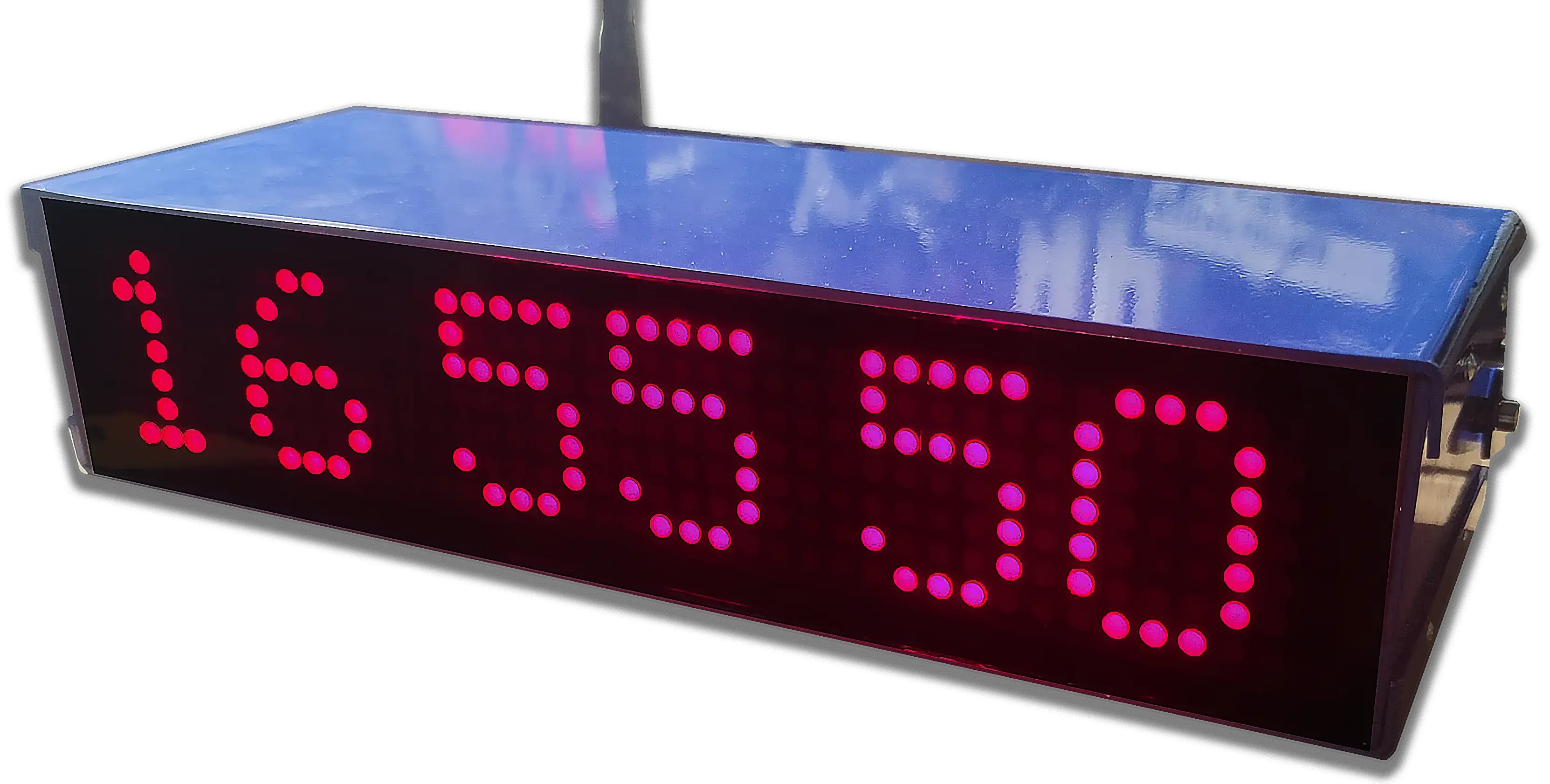

- Red LED display with 6-digit matrix
- Precisely adjustable brightness
- Optimal visibility up to 30 meters
- Precise synchronization via NTP protocol
- Connectivity: WiFi and Ethernet LAN support
- PoE (Power over Ethernet) compatible
- Automatic management of summer/solar time change
- Dedicated Windows software and web interface
- OTA wireless firmware updates

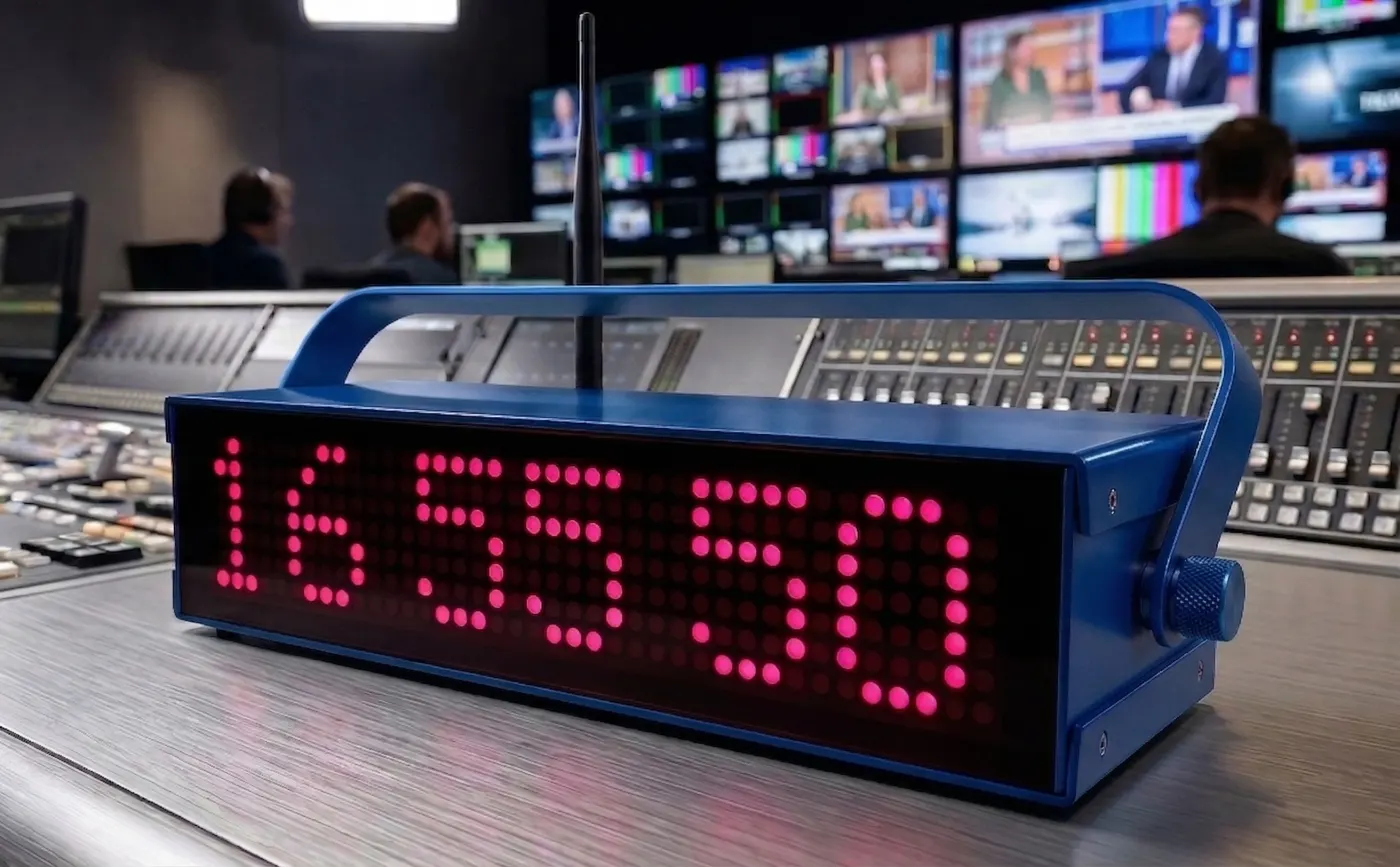

The Wallclock clock is a precision device that provides accurate time display synchronized via NTP. The 6-digit red LED display provides optimal visibility up to 30 meters. It supports WiFi and Ethernet LAN connectivity, with PoE or external power supply.
Configurable via dedicated software and web interface, it offers advanced features such as OTA updates, automatic daylight saving time management and battery backup. The compact metal case (341x77mm) is suitable for various professional installations, while the ESP32 microcontroller ensures flexibility and programmability.
In practice: PoE power over a single cable for both power and network, readable up to 30 meters, with no outlet needed by the wall. Elettronica Mangione has synchronized TV studios since 1984.
Specifications
Wallclock Wifi Time Display

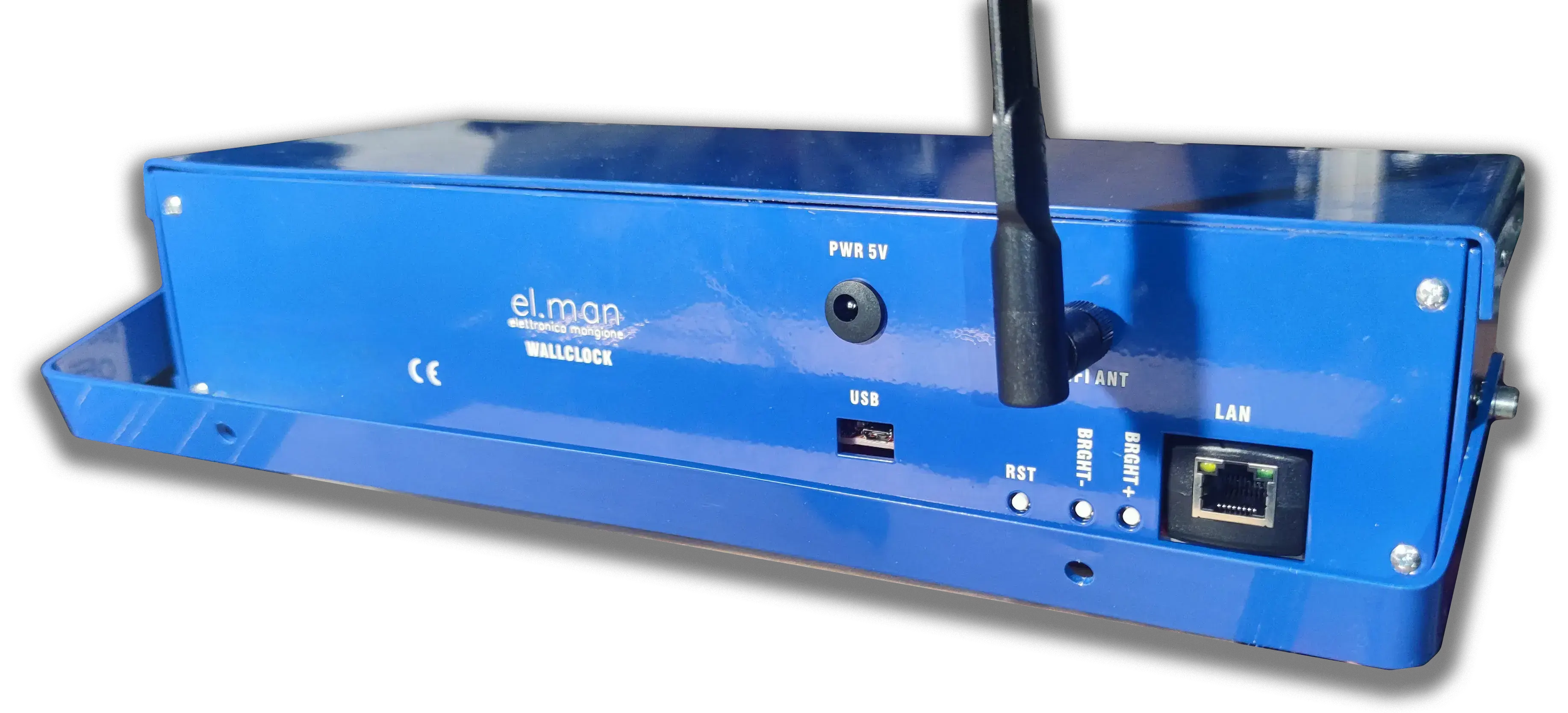

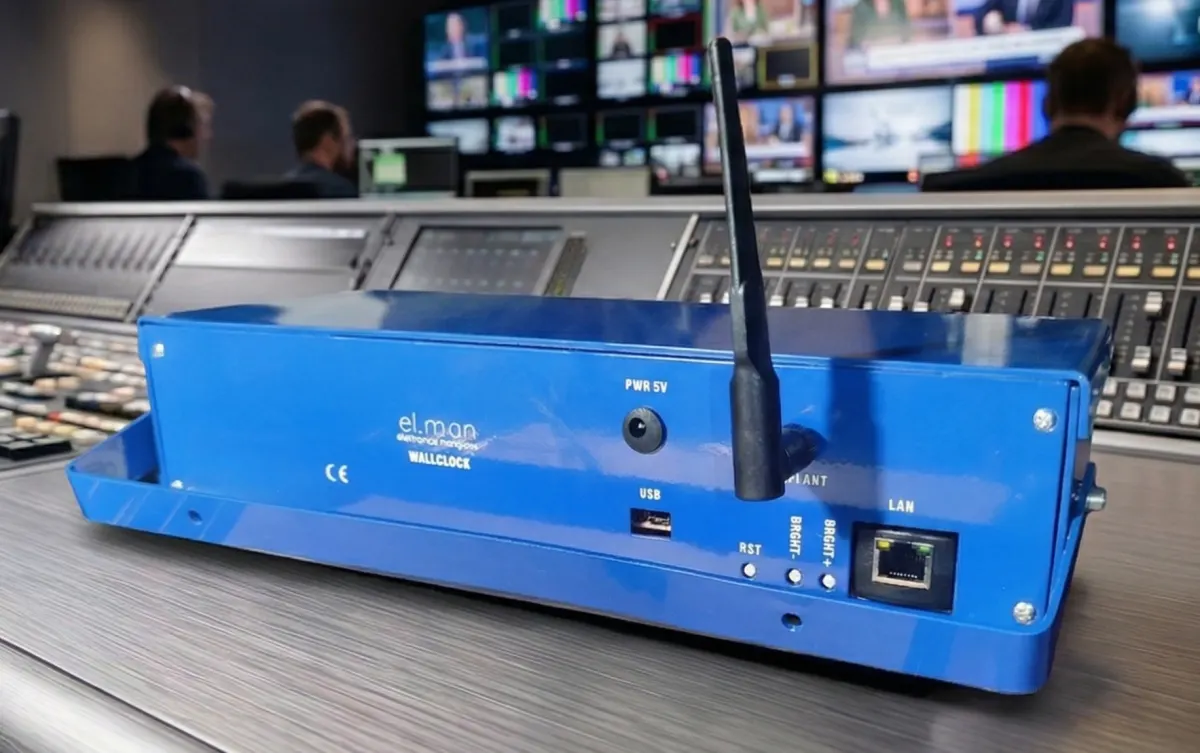

Connectors
- Ethernet RJ45
- DC input (5V)
- WiFi Antenna
- USB for configuration
Power supply
- Choice of POE (Power over Ethernet IEEE802.3af) or DC (5 VDC)
- Power consumption < 12 W
- External power supply 100-240V 5V 2A (2.1mm connector)
Operating parameters
- Temperature: 0° to 55°
- Humidity: up to 80% (no condensation)
Physical Characteristics
- Blue Metal Chassis
- Dimensions 34 l x 7,5 h x 12 d cm (13,3 l x 3 x 4,7 inches)
- Weight: 1,35 Kg (2,98 pounds)
Compliance
- ROHS, CE
Frequently asked questions
Frequently Asked Questions (FAQ)
If your question is not here, send it to us directly: the people who design the product will answer.
What is the WiFi Wallclock?
It is a wall clock with a 6-digit red LED matrix display, synchronizable through WiFi or LAN network.
At what distance is it readable?
Optimal visibility reaches up to 30 meters, with precisely adjustable brightness.
How does it synchronize and how is it powered?
It synchronizes via NTP over WiFi or LAN Ethernet and supports PoE power over a single cable or external power.
Which software features does it offer?
It offers dedicated Windows software and a web interface, wireless OTA firmware updates and automatic daylight saving management. It is based on an ESP32 microcontroller with a 341x77mm metal enclosure.
