Production timer
SPT — six timers, one room, zero timing mistakes
The SPT Timing System provides precise time management for various applications. It synchronizes with NTP servers via LAN and supports UD series displays. Equipped with web interface and front keypad, it allows control of customizable timers with forward and reverse counting functions.
- Six programmable timers
- UP / DOWN / OFFSET / DIFF
- Programmable GPI
- UD displays in sync

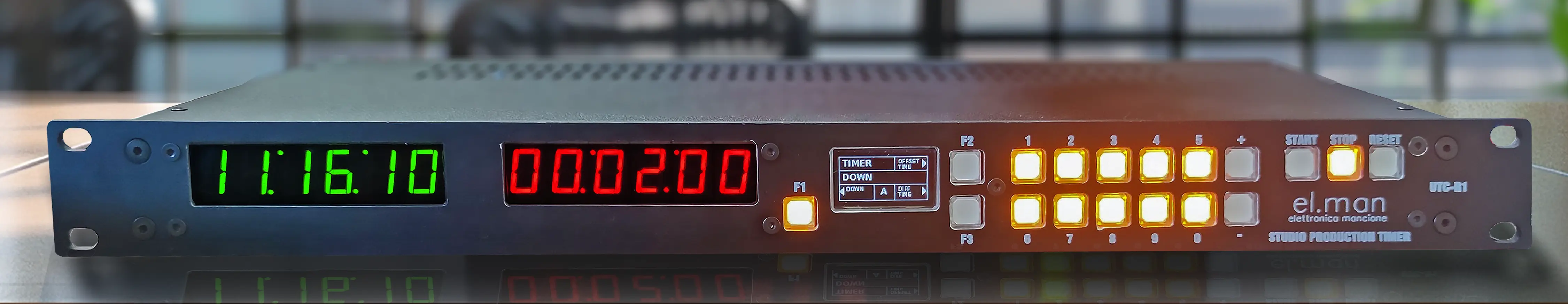

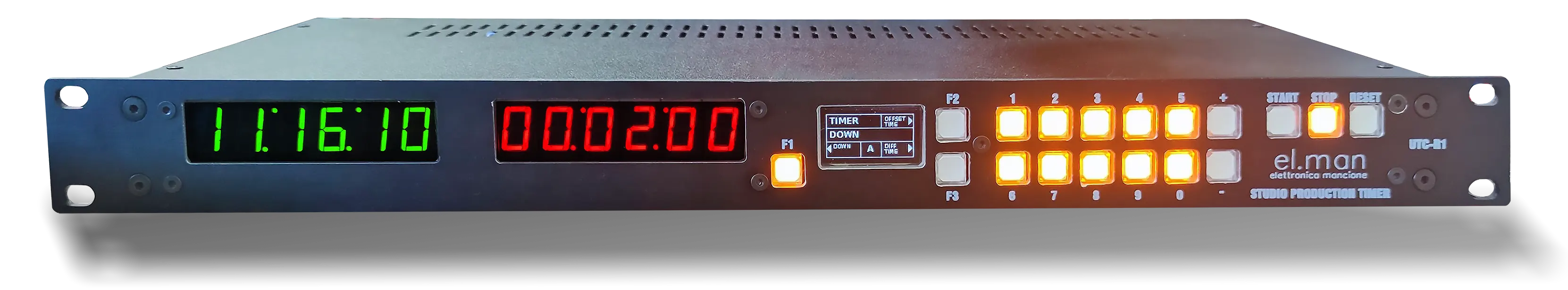

Front panel SPT Time Display
Features
SPT Time Display
- Dual LED display for simultaneous display of time and timer
- Multiple timers programmable with various modes (Up, Down, Offset, Diff)
- NTP synchronization for precise time management
- Customizable display settings (brightness, colors, time formats)
- Web interface for configuration and remote control
- LTC and Ethernet connectivity
- Compatibility with external UD series displays
- Firmware updates via LAN OTA
- Function keys and programmable GPI inputs/outputs
- Multiple display modes (Local, Real Time, Date, Timer, Timecode)
- PoE (Power over Ethernet) support
- Automatic management of summer/solar time change
The UTC-R1 (SPT) is a state-of-the-art timing system designed to meet the most stringent requirements of studio production environments. This versatile device offers a network of six programmable timers, providing precise and flexible time management for a wide range of professional applications.
At the heart of the system is an intuitive web interface that enables simplified configuration and remote control, while the OLED display and front keypad ensure immediate and convenient operation directly on the device. The UTC-R1 (SPT) supports several operating modes, including UP, DOWN, OFFSET TIME and DIFF TIME, adapting to any production scenario.
NTP synchronization ensures absolute time accuracy, essential for professional productions. The system is also compatible with UD series displays, allowing multiple and flexible displays throughout the studio. Built-in GPI capabilities facilitate interaction with other systems, increasing the versatility of the unit.
In practice: UP/DOWN/OFFSET/DIFF modes in one box for countdowns, count-ups and time differences, with UD displays in sync across the room. Elettronica Mangione has synchronized TV studios since 1984.
Specifications
SPT Time Display

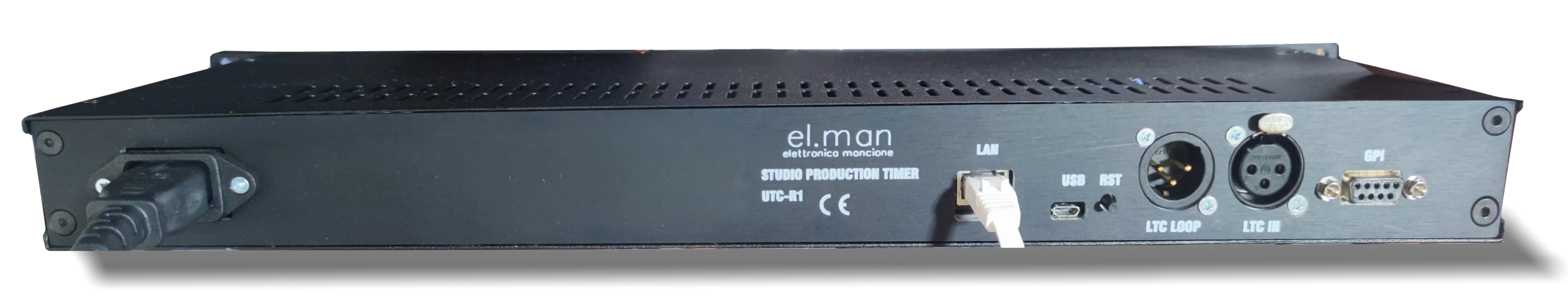

Connectors
- Ethernet RJ45
- 86-264 VAC input
- XLR female 3 pin: LTC input
- XLR male 3 pin: LTC loop output
- D9 Sub female: GPI
Power supply
- 86-264 VAC
- Power consumption < 30 W
Operating parameters
- Temperature: 0° to 55°
- Humidity: up to 80% (no condensation)
Physical Characteristics
- Chassis in Black Metal
- Dimensions 1U: 43 l x 4 h x 17 d cm (16,9 l x 1,5 x 6,6 inches)
- Weight: 2,5 Kg (5,51 pounds)
Compliance
- ROHS, CE
Frequently asked questions
Frequently Asked Questions (FAQ)
If your question is not here, send it to us directly: the people who design the product will answer.
What is the SPT system?
The Studio Production Timer UTC-R1 (SPT) is a broadcast timing system with a dual LED display for simultaneous display of time and timer.
How many timers and which modes does it manage?
It manages multiple programmable timers in Up, Down, Offset and Diff modes, plus Local, Real-time, Date, Timer and Timecode display modes.
How does it synchronize and connect?
It synchronizes via NTP over LAN, with LTC and Ethernet connectivity, PoE support and compatibility with external UD series displays.
Does it offer GPI controls?
Yes, it has programmable function keys and GPI inputs/outputs, a web interface, automatic daylight saving management and OTA firmware updates over LAN.
Related Products

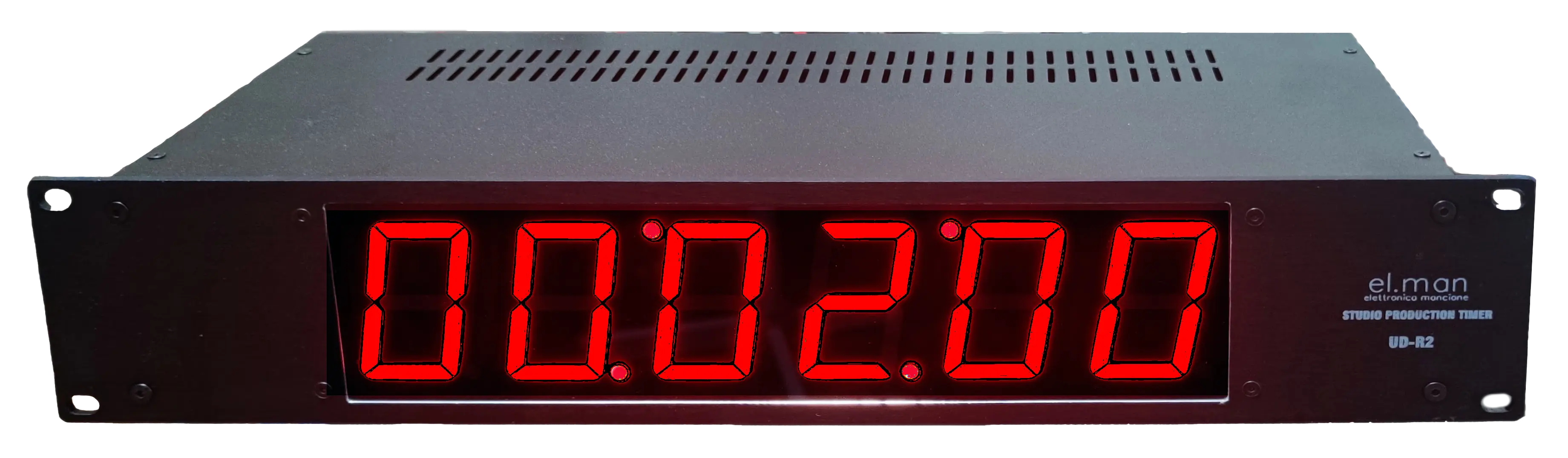

The display that goes with it
