Satellite display
UD-R2 — the same time in every corner of the studio
Six-digit UD display panel with red or green digits, the ideal complement to the UTC-R1 (SPT) timing system.
- 6 LED digits
- Red or green via software
- 2U rack
- Remotable from UTC-R1

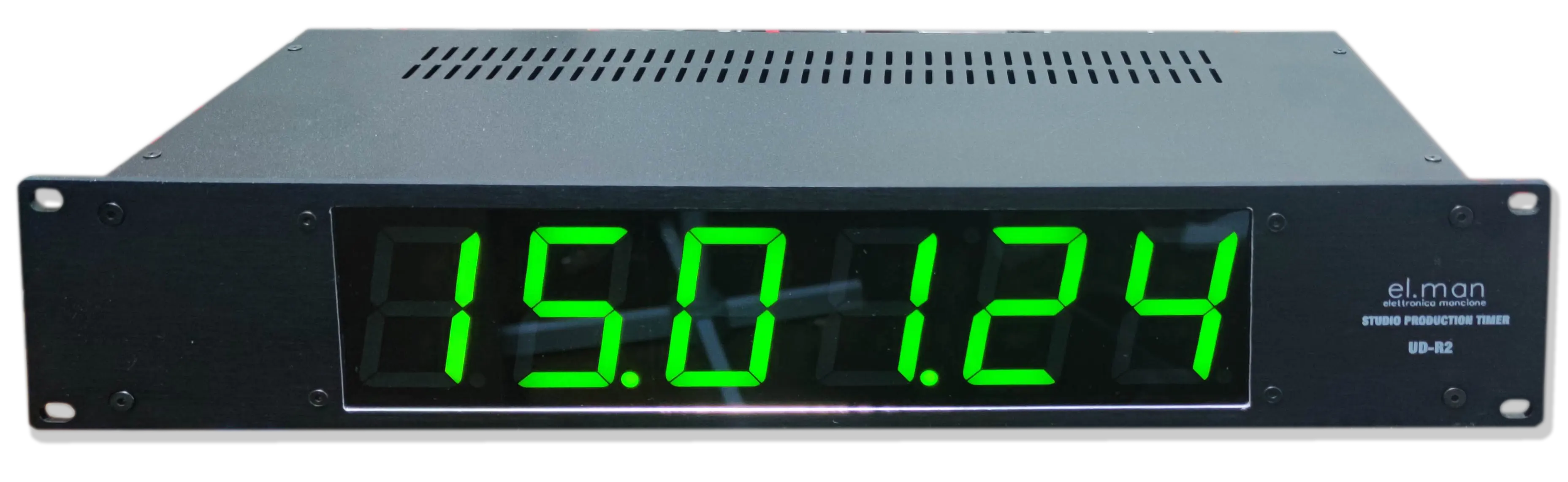

Front Panel UD-R2 Red
Features
UD-R2 Red/Green
- Red/Green LED display with 6-digit digits
- Hours, minutes, seconds (6 digits)
- Remotable from the UTC-R1 (SPT) unit
- Precise synchronization via NTP protocol
- Connectivity: LTC and Ethernet LAN
- GPI connector
- Automatic management of summer/solar time change
- Web interface
- LAN OTA firmware updates
UD displays are the ideal complement to the UTC-R1 (SPT) timing system. Selectable in red or green LED colour via software, these 2-unit displays offer a clear and immediate display of time in any studio environment.
With bright and crisp digits, they ensure excellent readability even from a distance. Ethernet connectivity ensures easy integration into your existing network, allowing you to display local time, countdown or timecode in perfect synchrony with the central unit. Rugged and reliable, UD displays are the perfect choice for professionals who require accuracy and visibility in their productions.
What this means for you: software-selectable LED color, red for critical countdowns or green for current time, without changing hardware. Elettronica Mangione has synchronized TV studios since 1984.
Specifications
UD-R2 Red/Green

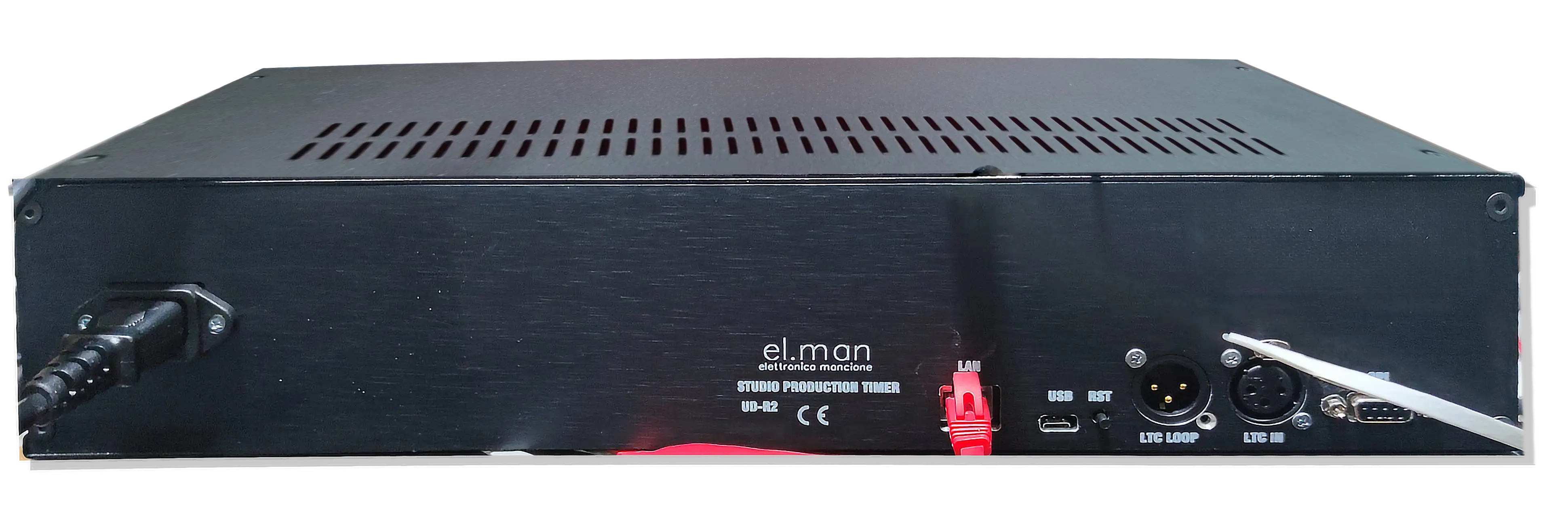

Connectors
- Ethernet RJ45
- 86-264 VAC input
- XLR female 3 pin: LTC input
- XLR male 3 pin: LTC loop output
- DSub D9 female connector: GPI
Power supply
- 86-264 VAC
- Power consumption < 20 W
Operating parameters
- Temperature: 0° to 55°
- Humidity: up to 80% (no condensation)
Physical Characteristics
- Chassis in Black Metal
- Dimensions 2U: 43 l x 8 h x 17 d cm (16,9 l x 3,1 x 6,6 inches)
- Weight: 2,8 Kg (6,17 pounds)
Compliance
- ROHS, CE
Frequently asked questions
Frequently Asked Questions (FAQ)
If your question is not here, send it to us directly: the people who design the product will answer.
What is the UD-R2?
It is a 6-digit UD display panel with red or green LEDs, the ideal complement to the UTC-R1 (SPT) timing system.
Is the display color selectable?
Yes, the LED color, red or green, is selectable via software.
How does it synchronize?
It synchronizes through the NTP protocol, with LTC and LAN Ethernet connectivity, and is remotable from the central UTC-R1 (SPT) unit.
Which additional features does it offer?
It has a GPI connector, automatic daylight saving and standard time switching, a web interface and OTA firmware updates over LAN.
