Visibility in the studio
Display NTP Clock — timecode readable across the studio

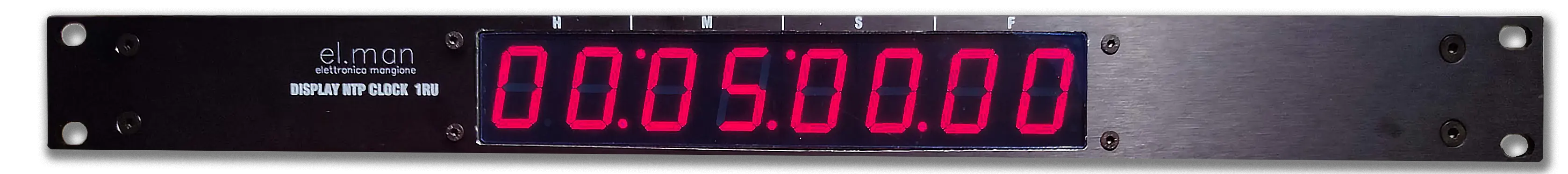

Red LED 6- or 8-digit display panel, synchronizable via LTC or LAN, available as a 1U or 2U rack unit.
- 6 or 8 red LED digits
- LTC and LAN input
- 1U or 2U rack
- Internal quartz backup

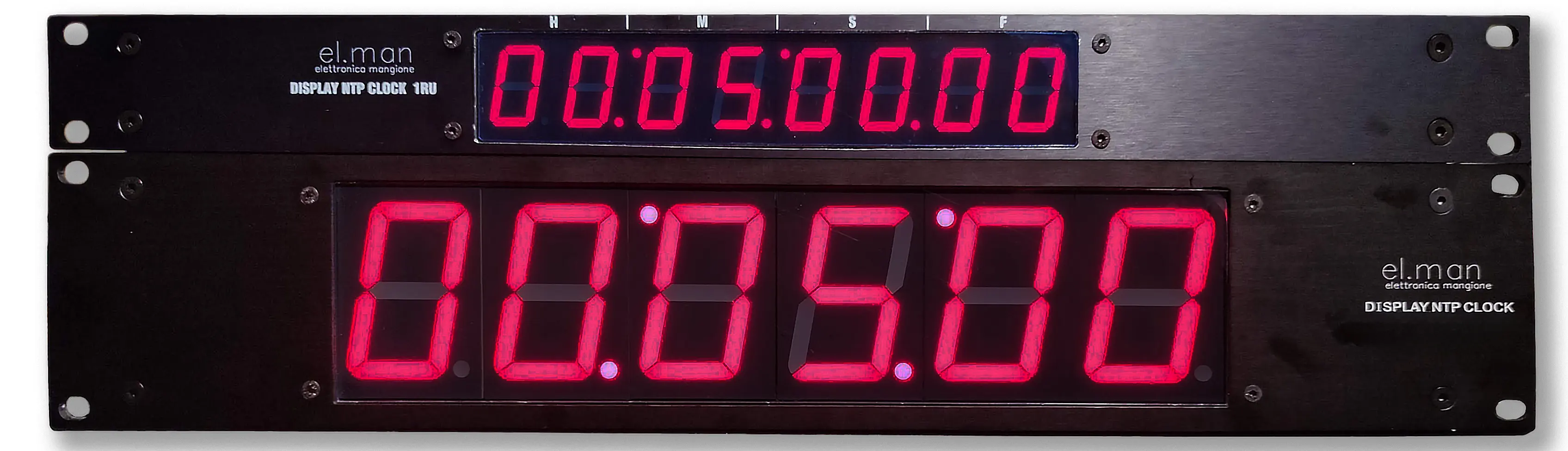

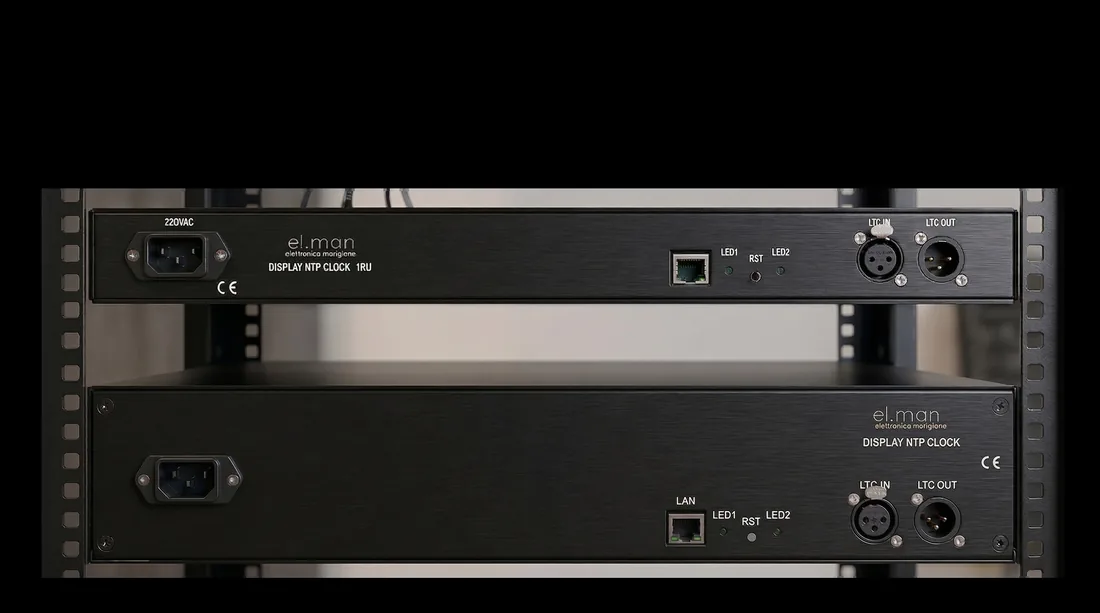

Display NTP Clock, 1 and 2 rack unit versions
Features
Display NTP Clock
- Red LED display with 6/8 digit digits
- Hours, minutes, seconds (6 digits) — hours, minutes, seconds, frames (8 digits)
- Controllable with a remote for forward and reverse counting
- Precise synchronization via NTP protocol
- Connectivity: LTC and Ethernet LAN
- 1 unit or 2 unit rack version
- Automatic management of summer/solar time change
- Web interface
- LAN OTA firmware updates
The NTP Clock Display is a precision device that provides accurate time display synchronized via NTP or LTC. The 6- or 8-digit red LED display provides excellent visibility. It supports Ethernet LAN connectivity via RJ45 port.
The internal quartz clock ensures continuous operation even during signal interruptions. Configurable via web interface, it offers advanced features such as brightness adjustment and display of hours, minutes, seconds and frames. Universal power supply (86-264 VAC) makes it suitable for various installations.
In practice: the internal quartz keeps counting even if the signal drops, and remote up/down counting handles scene countdowns without touching the rack. Elettronica Mangione has synchronized TV studios since 1984.
Specifications
Display NTP Clock

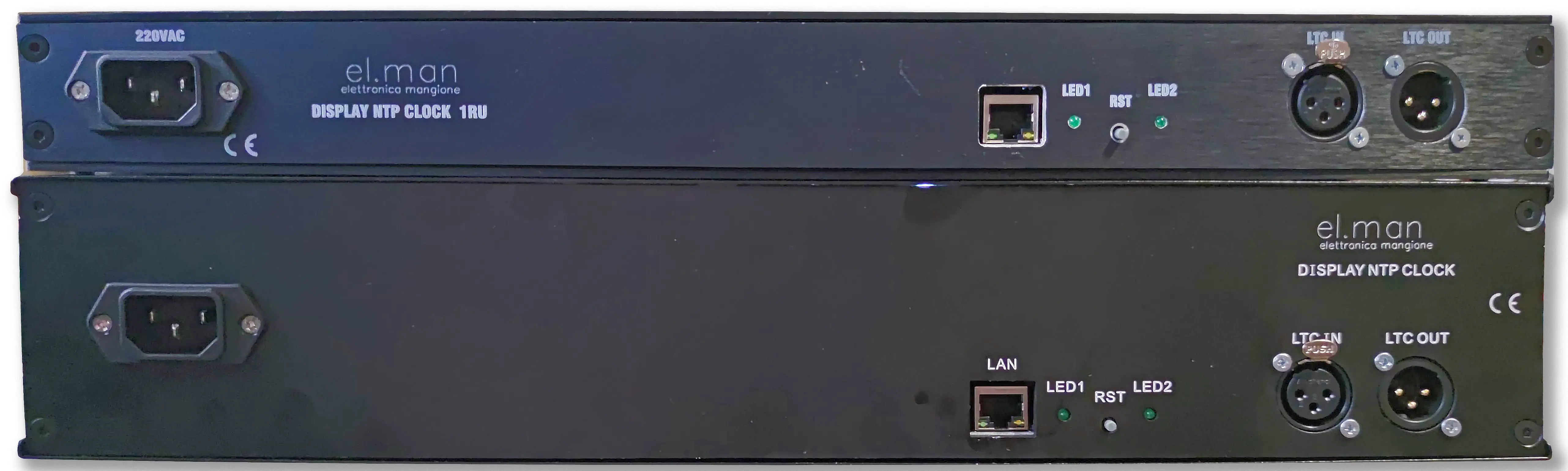

Connectors
- Ethernet RJ45
- 86-264 VAC input
- XLR female 3 pin: LTC input
- XLR male 3 pin: LTC loop output
Power supply
- 86-264 VAC
- Power consumption < 20 W
Operating parameters
- Temperature: 0° to 55°
- Humidity: up to 80% (no condensation)
Physical Characteristics
- Chassis in Black Metal
- Dimensions 2U: 43 l x 8 h x 17 d cm (16,9 l x 3,1 x 6,6 inches)
- Dimensions 1U: 43 l x 4 h x 17 d cm (16,9 l x 1,5 x 6,6 inches)
- Weight: 2U 2,8 Kg (6,17 pounds) — 1U 2,5 Kg (5,51 pounds)
Compliance
- ROHS, CE
Frequently asked questions
Frequently Asked Questions (FAQ)
If your question is not here, send it to us directly: the people who design the product will answer.
What is the LTC Display NTP Clock?
It is a red LED display panel with 6 or 8 digits, synchronizable via LTC or LAN, with excellent readability across the whole studio.
How many digits does it show and what information?
The 6-digit version shows hours, minutes and seconds; the 8-digit version also adds frames. It is available as a 1 or 2 rack unit version.
How does it synchronize?
It synchronizes through the NTP protocol over Ethernet LAN (RJ45) or through an LTC signal. An internal quartz clock guarantees continuity even without a signal.
Does it handle daylight saving and firmware updates?
Yes. It offers automatic daylight saving management, a web interface and OTA firmware updates over LAN. Universal power supply 86-264 VAC.
